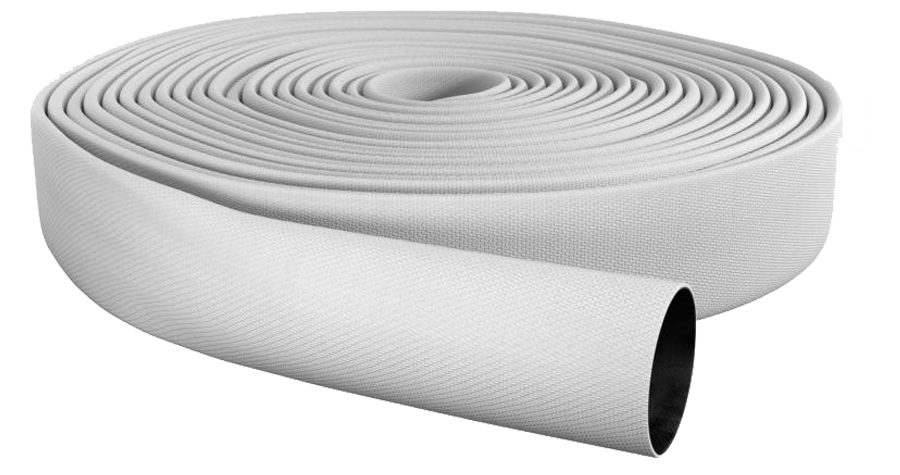

OSW INDUSTRY

Industry hose inside rubberlined

Advantages

very light and flexible hose quality
minimum maintenance
extremely resistant to aging
resistant to ozone and UV
excellent abrasion resistance
Cold-resistant up to – 40 ° C
Heat-resistant up to + 100 ° C
minimum friction loss because of very smooth inner lining
suitable for sea water, hot water, many chemicals



Download

Data Sheet OSW INDUSTRY

Hose construction

Inside: high-quality, very light synthetic rubber on the basis of EPDM
Outside: jacket of 100 % high tenacity synthetic polyester yarn (colour: white plain), circular-woven twill weave, warp and weft threads multiple twisted

Colours

Technical Details

The data regarding bursting pressure and working pressure refer only to the pure hose without couplings. Changes in technical specification without prior notice.

Diameter Inch	Diameter mm	Bursting pressure bar	Bursting pressure PSI	Working pressure Security 1:3 bar	Working pressure Security 1:3 PSI	Working pressure Security 1:4 bar	Working pressure Security 1:4 PSI	Weight g/m (+/– 5 %)	Weight lbs/ft (+/– 5 %)	Wall Thickness mm	Theor. Tensile Strength kg
1 (Storz)	25	50	580	14	205	10	145	125	0,081	1,45	2.300
1 (Geka)	27	50	580	14	205	10	145	135	0,091	1,45	2.300
1 1/4	32	50	580	14	205	10	145	165	0,104	1,45	2.600
1 1/2	38	50	580	14	205	10	145	220	0,121	1,55	3.200
1 1/2	40	50	580	14	205	10	145	225	0,134	1,55	3.200
1 2/3	42	50	580	14	205	10	145	230	0,155	1,55	4.200
1 3/4	45	50	580	14	205	10	145	240	0,151	1,55	3.800
2	52	50	580	14	205	10	145	290	0,188	1,55	5.800
2 1/6	55	50	580	14	205	10	145	310	0,181	1,55	4.600
2 1/2	64	50	580	14	205	10	145	365	0,239	1,55	5.700
2 1/2	65	50	580	14	205	10	145	370	0,242	1,55	5.700
2 1/2	66	50	580	14	205	10	145	375	0,245	1,55	5.700
2 3/4	70	50	580	14	205	10	145	395	0,259	1,55	6.800
3	75	50	580	14	205	10	145	460	0,309	1,65	8.600
3 1/2	90	35	510	12	175	8	115	600	0,376	1,90	9.100
4	102	35	510	12	175	8	115	650	0,430	1,90	9.500
4 1/3	110	35	510	12	175	8	115	770	0,511	1,90	11.700
5	125	35	510	12	175	8	115	880	0,571	2,00	12.800
6 (Storz)	150	35	510	12	175	8	115	960	0,625	2,00	12.800
6 (Perrot)	154	35	510	12	175	8	115	975	0,632	2,00	12.800
8	205	24	435	10	145	7	100	1.390	0,705	2,00	24.500


