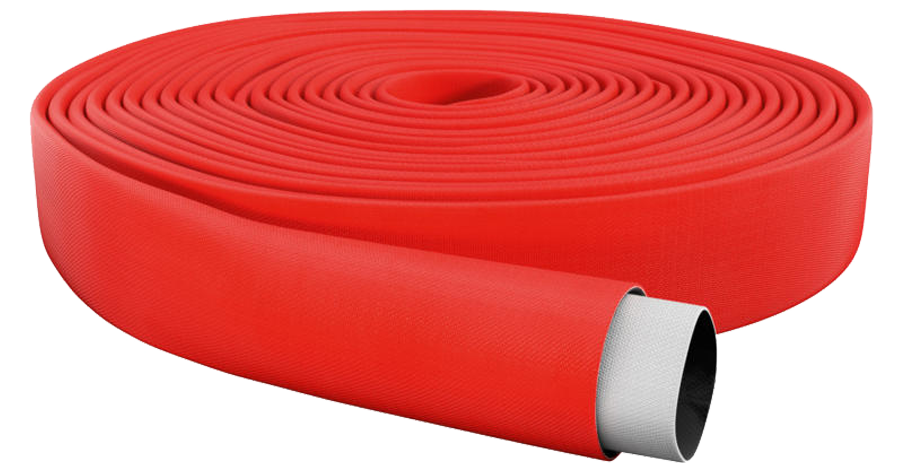

OSW SNOW CANON
Industry hose inside rubberlined and outside coated
Advantages
- due to the double jacket construction as a high-pressure hose suitable for extreme conditions (bursting pressure 150 bar)
- resistant to aging
- resistant to ozone and UV resistant
- Cold-resistant up to – 40 ° C
- Heat-resistant up to + 100 ° C
- minimum friction loss, minimum elongation
Hose construction
- Inside: high-quality, very light synthetic rubber on the basis of EPDM, jacket of 100 % high tenacity synthetic polyester yarn, circular-woven twill weave, warp and weft threads multiple twisted, double jacket construction allows extreme high operating / working pressures
- Outside: uncoated jacket (standard colour: red dyed; other on request)
Colours
Service
- individual printing possible (e.g. company logo)
- hose can be connected with national and international couplings
- binding: wire, smartFIT, clamps, Iconos, Innotrade, press sleeves etc.
- impact and abrasion cuffs over the binding (smooth or conical)
- repair or sliding sleeves in different designs
- innovations: smartFIT, smartPROTECT, RFID chip, directional arrow, edge gliders
- on customer request: double rolled, untwisted, with factory test report
Technical Details
The data regarding bursting pressure and working pressure refer only to the pure hose without couplings. Changes in technical specification without prior notice.
| Diameter Inch | Diameter mm | Bursting pressure bar | Bursting pressure PSI | Working pressure bar | Working pressure PSI | Weight g/m (+/– 5 %) | Weight lbs/ft (+/– 5 %) | Wall Thickness mm | Theor. Tensile Strength kg |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 38 | 150 | 2.175 | 60 | 870 | 490 | 0,329 | 3,0 | 8.100 |
| 2 | 52 | 150 | 2.175 | 60 | 870 | 700 | 0,470 | 3,0 | 10.600 |
| 2 1/2 | 65 | 150 | 2.175 | 60 | 870 | 950 | 0,638 | 3,0 | 12.300 |
