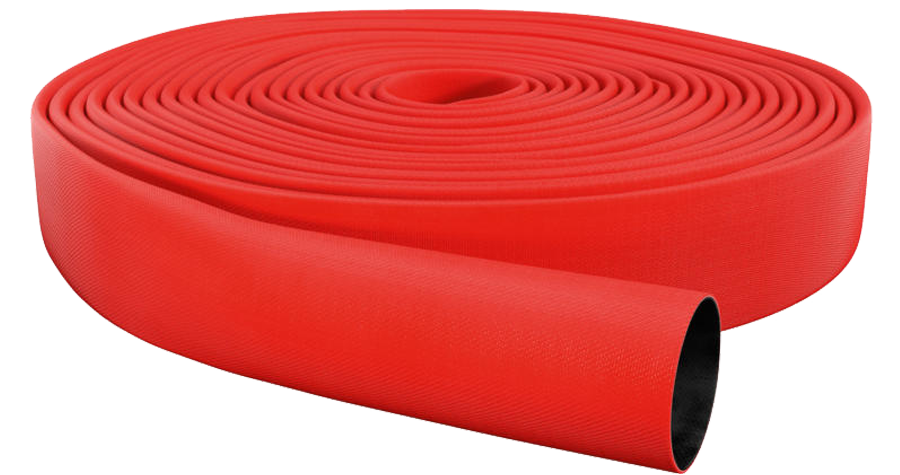

OSW INDUSTRY PU

Industry Hose inside rubberlined and outside coated (Polyurethane)

Advantages

very light and flexible hose quality
minimum maintenance
extremely resistant to aging
resistant to ozone and UV
excellent abrasion resistance
Cold-resistant up to – 40 ° C
Heat-resistant up to + 100 ° C
minimum friction loss because of very smooth inner lining
suitable for sea water, hot water, many chemicals



Download

Data Sheet OSW INDUSTRY PU

Hose construction

Inside: high-quality, very light synthetic rubber on the basis of EPDM, jacket of 100 % high tenacity synthetic polyester yarn, circular-woven twill weave, warp and weft threads multiple twisted
Outside: polyurethane coating (standard colour: red; other on request)

Colours

Technical Details

The data regarding bursting pressure and working pressure refer only to the pure hose without couplings. Changes in technical specification without prior notice.

Diameter Inch	Diameter mm	Bursting pressure bar	Bursting pressure PSI	Working pressure Security 1:3 bar	Working pressure Security 1:3 PSI	Working pressure Security 1:4 bar	Working pressure Security 1:4 PSI	Weight g/m (+/– 5 %)	Weight lbs/ft (+/– 5 %)	Wall Thickness mm	Theor. Tensile Strength kg
1 (Storz)	25	50	580	14	205	10	145	130	0,087	1,45	2.300
1 (Geka)	27	50	580	14	205	10	145	140	0,091	1,45	2.300
1 1/4	32	50	580	14	205	10	145	170	0,111	1,45	2.600
1 1/2	38	50	580	14	205	10	145	230	0,128	1,55	3.200
1 1/2	40	50	580	14	205	10	145	235	0,141	1,55	3.200
1 2/3	42	50	580	14	205	10	145	250	0,161	1,55	4.200
1 3/4	45	50	580	14	205	10	145	255	0,158	1,55	3.800
2	52	50	580	14	205	10	145	305	0,195	1,55	5.800
2 1/6	55	50	580	14	205	10	145	325	0,188	1,55	4.600
2 1/2	64	50	580	14	205	10	145	380	0,245	1,55	5.700
2 1/2	65	50	580	14	205	10	145	385	0,249	1,55	5.700
2 1/2	66	50	580	14	205	10	145	390	0,252	1,55	5.700
2 3/4	70	50	580	14	205	10	145	410	0,265	1,55	6.800
3	75	50	580	14	205	10	145	485	0,316	1,65	8.600
3 1/2	90	35	510	12	175	8	115	630	0,383	1,90	9.100
4	102	35	510	12	175	8	115	700	0,437	1,90	9.500
4 1/3	110	35	510	12	175	8	115	835	0,517	1,90	11.700



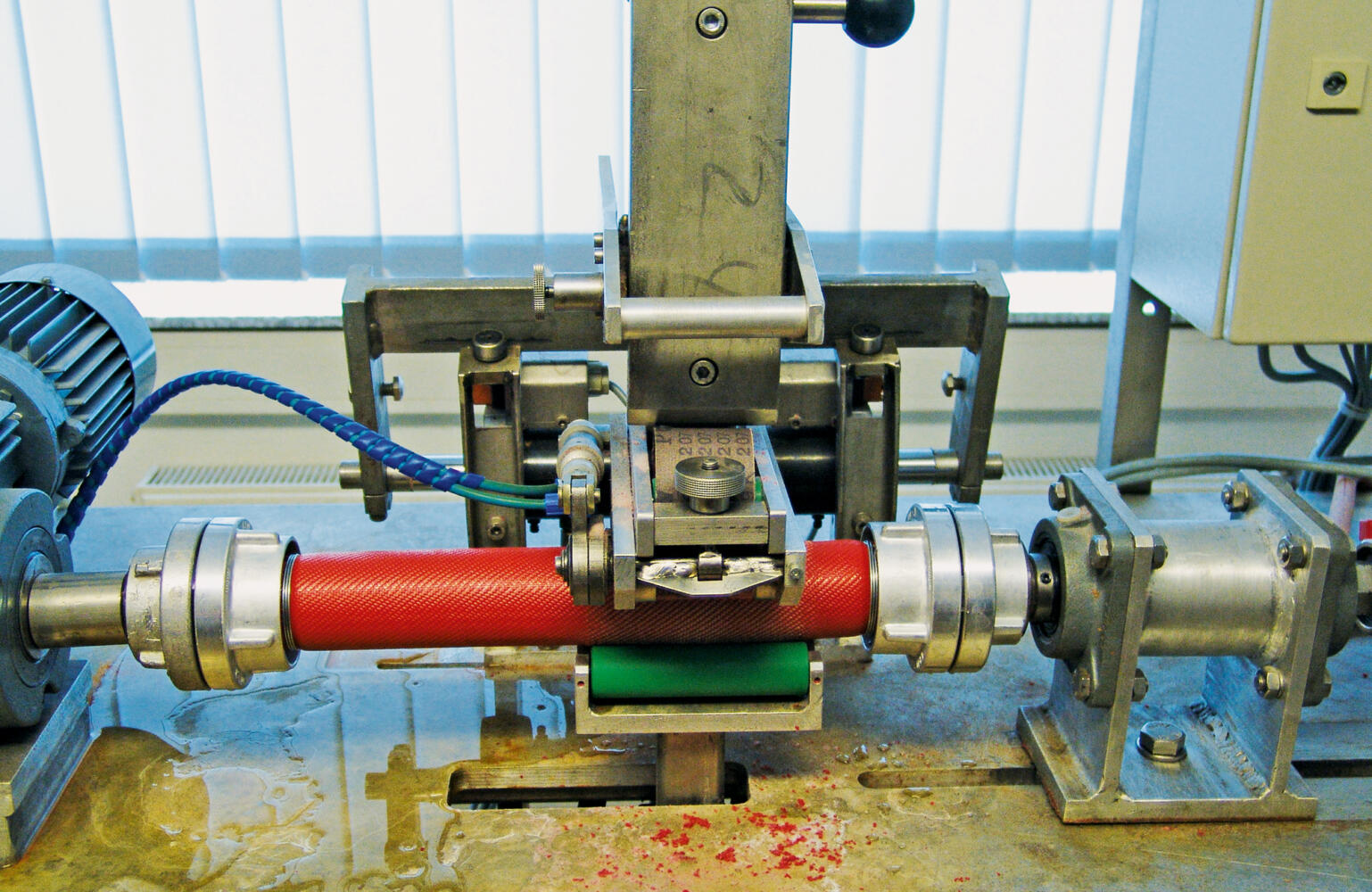

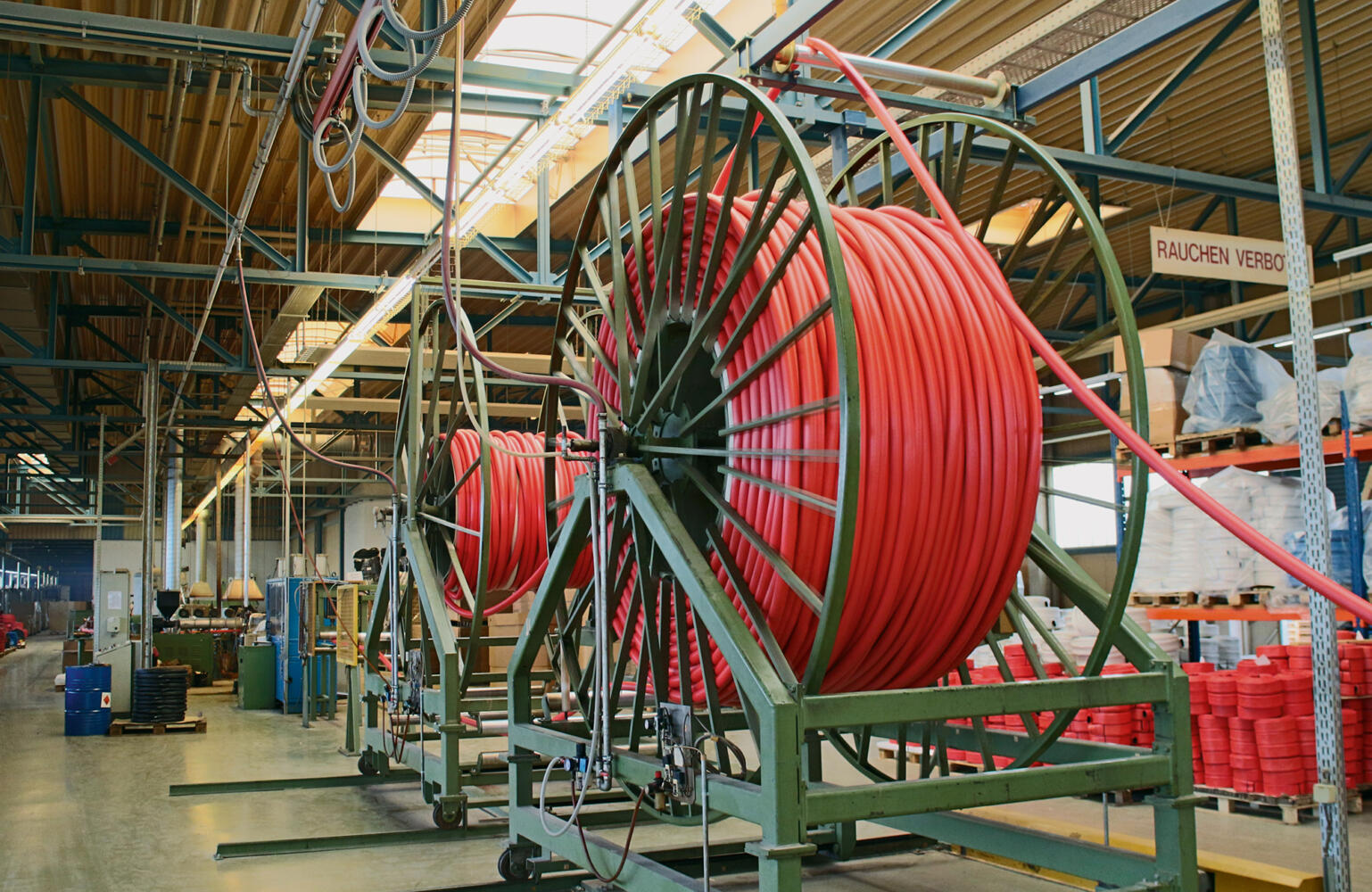

Production
